    2200kg Weight SMT Reflow Oven 10 Zones With PLC Control System

    Ask Lasest Price
    Brand Name : ETON
    Model Number : ET-R10
    Certification : CE,CCC,SIRA
    Payment Terms : T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

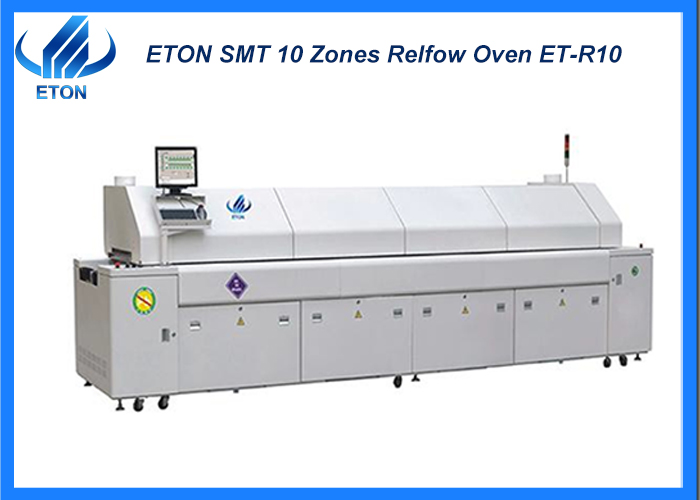

    2200kg Weight SMT Reflow Oven 10 Zones With PLC Control System

    PLC control system ​ 2200kg weight of SMT reflow oven 10 zones


    Description

    The control system adopts PLC, and the upper computer adopts brand-name computer, equipped with genuine Windows XP operating system and 15-inch LCD monitor to ensure the stability and reliability of control system.

    1. The control software is powerful, with flexible process parameter control and temperature curve test functions, and the Chinese and English operation interface can be switched at any time.

    2. Use WOGO terminal blocks; all important electrical components are imported brands, and all signal wires are shielded.

    3. The temperature module is self-tuning, the cold junction is automatically compensated, and the temperature is controlled at ±1℃.

    Machine main features


    Technical parameter:
    NO. of heating zone10 hot air circulation heating zones on the top and 10 hot air circulation heating zones on the bottom.
    heating methodFlat-wound heating wire on both sides, pressurized air duct, point-to-point variable frequency motor heat exchange method, variable frequency motor drive
    Length of heating zone3900MM
    NO. of cooling zone2(Natural air cooling system)
    Length of cooling zone1100MM
    Conveyor belt width700MM
    PCB size50-700mm
    PCB heightUp:25mm down:20mm max:45mm
    Transport directionleft-right(right-left) Optional
    Delivery methodMesh belt +Chain
    Conveyor belt height900±20MM
    PCB transportation speed0~1.8m/min
    PCB temperature deviation±2℃
    Temperature control method±1-2℃(Static)
    Starting power90KW
    Working power20KW
    Heating timeApprox.20min
    Machine dimensions(L*W*H)L5800*1400*1600MM
    net weight2200kg

    Our advantage

    We can provide SMT line solution for you!


    Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc

    1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.

    2.Provide Overseas engineers for Free installation and free training.

    3.TOP brand of China SMT machine manufacturer,500 employees for ETON


    Certificates

    As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

    etc.

    Service

    Maintenance period 1 year

    One year warranty during warranty any parts that need to be repaired and replaced will be free.


    Software and hardware lifetime maintenance

    Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.


    Visit customers regularly and gather information

    Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.


    Provide the latest information about technology and equipment

    We give professional technology suggestions to our clients. And share the updated news with our clients


    On-site service

    We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.

    According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.

    FAQ

    Q. Can you accept CIF as the quoted price?

    A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.


    Q. Can I go and see if you have sold the equipment to India?

    A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.


    Q. How many products can your machine make per day?

    A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.


    Q.What kind of machine you have?

    A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
