Features

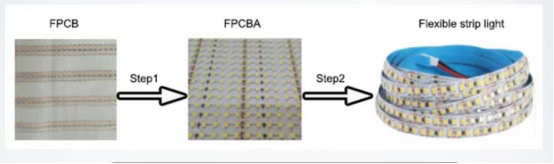

1. Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip . Producing with 2~4 types of materials with high capacity , available for board with any proportion of LED chip and resistor .
2. Two mounting modules ,18 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .
3. Calibration automatically , high precision , available for RGB .
4. Exclusive patent technology: Group to take and group to mount.

Details

• ETON Tech Adjustable Placement Head

component picking position can be adjusted according to PCB pad pitch , min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor , capacitor , bridge rectifier etc . wide component range .

• 5 sets Digital camera

(1) 2 sets of camera with suction nozzle: flight identification, detection of component adsorption state, record PCB board leakage situation. Adjust nozzle spacing.

(2) 2 sets of Feida cameras: detect whether there are components, adjust the Feida spacing

(3) 1 sets of mark cameras: Identify mark points

Technical parameter

• Placement effect

• Company Profile

ETON company

Shenzhen ETON Automation Equipment Co.,Ltd. -----Manufacturer of SMT automatic pick and place machine. Our Product playing a leading role in this industry. We have set a long lasting cooperation and partnership with most customers .Warmly welcome all customers to visit our company for friendship and cooperation.

• A leading manufacturer of automatic high - speed pick and place machine
• The largest high - tech LED light making machine manufacturer in China
• Obtained a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights

ETON Industrial Park

• There is 50000 square meters modern intelligent Industrial parks , equipped with an advanced processing and manufacturing center
• There are various types of machines , the fastest capacity reach 250000CPH, which is the fastest machine mounting speed in the world

ETON Team

• High service efficiency , there is service office in India .
• Quality First , Client - oriented , Continuous Improvement .
• 24 hours online for you to answe

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
