Product description

1,The SMT high speed mounter HT-T9 is designed with 68 suction nozzles and 68 feeding stations. It is controlled by two arms, with 34 suction nozzles controlled by one arm each. Among them, 34 suction nozzles are divided into two groups, each with 17 nozzles, and each group is jointly controlled by a servo motor and a corner motor.

2,The four different materials of a product can be pasted simultaneously, which can accelerate product production without affecting high productivity.

3,The mounter HT-T9 is suitable for one-time mounting of soft light strips with a length of 5 meters, 20 meters, 50 meters, or even more.

4,During mounting, a single plate of material can be attached separately, and the same plate of material is always attached to the same light bar.

5,Calibration automatically,high precision,available for RGB.

6,Exclusive patent technology:group to take and group to mount.

Equipment Details

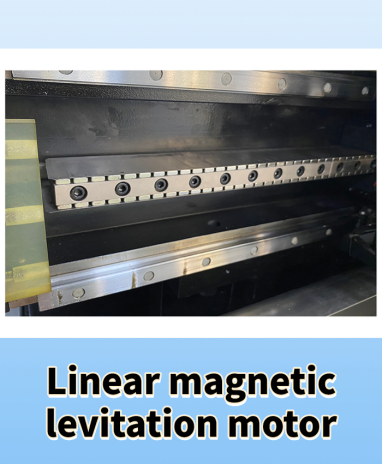

• Linear magnetic levitation motor

The stator itself is a permanent magnet, and the interaction between the moving stator and the magnetic pole causes repeated movement of the mounting head.

• Transportation platform

Transport the PCB board to the designated location,the platform has an adsorption function, which is conducive to adsorption of soft PCB boards.

• Inlet and outlet plate inductor

Detect if there is a PCB on the track.

Parameter

Certificates

Our company has obtained 9 invention patents, 12 software Copyrights and 112 practical patents

Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0

ZL 2012 2 0178869.1 ZL 2012 2 0415505.0

ZL 2012 2 0415044.7 ZL 2012 2 0415356.8

ZL 2012 2 0415061.0

Package

We usually use vacuum wooden boxes to package our products. Vacuum can be very shockproof and ensure the integrity of the product. If you have special requirements for packaging, we can also achieve them for you.

FAQ

Q1: What are the trade terms commonly used by your company?

A: We usually use EXW and FOB.

Q2: What valuable services can I obtain after purchasing a SMT high speed mounter?

A: We will follow up all processes, help you clear customs, and do our best to ensure your interests. At the same time, after your production is on track, we will also visit regularly to share your latest industry information.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
