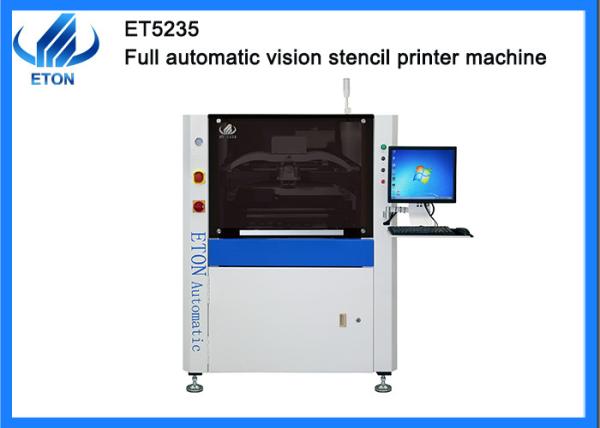

    CCC LED Bulbs 2 Independent Direct connect motor Automatic Stencil Printer

    Ask Lasest Price
    Brand Name : ETON
    Model Number : ET5235
    Certification : CCC, CE, SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    CCC LED Bulbs 2 Independent Direct connect motor Automatic Stencil Printer

    Features

    1. The PCB loading direction can be selected and combined freely. Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.
    2. Unique crafted internal gear conveyor belt to prevent jamming.
    3. The optimally designed module drive structure effectively improves the stability of the platform calibration, and realizes ultra-small transmission under fine-tuning, so that the machine can meet the printing requirements of higher precision.The structure is simple and reliable, the adjustment is convenient, and the height adjustment of the support PIN of the PCB board with different thicknesses can be quickly realized.
    4. Cast aluminum scraper beam to ensure smoother running of scraper

    Technical parameter

    Screen Frames max size737mm
    Screen Frames min size470mm
    Screen Frames thickness25~40mm
    PCB size(L* W)

    Max size:520mm*350mm

    Min size:50mm*50mm

    PCB Thickness0.6-6mm
    PCB warpage<1%(Max PCB diagonal)
    Transport height900±20mm
    Transport directionLeft-Right; Right-Left; Left-Left; Right-Right
    Transport speedMax 1200mm/s Programmable
    Squeegee pressure0~10kg/cm
    Squeegee angle55℃Standard
    Squeegee typeSteel scraper(Standard),PV scraper(Option)
    Stencil separation speed0.1~20mm/sec Programmable
    Cleaning systemDry,Wet,Vacuum (Programmable)
    Table adjustment rangesX:±5mm;Y:±5mm;θ:±2
    Printing accuracy±0.025mm
    Cycle time≤9s (Exclude printing & cleaning)
    Product changeover<5Min
    Air required2

    Company Profile

    ETON company

    Shenzhen ETON Automation Equipment Co.,Ltd. -----Manufacturer of SMT automatic pick and place machine. Our Product playing a leading role in this industry. We have set a long lasting cooperation and partnership with most customers .Warmly welcome all customers to visit our company for friendship and cooperation.

    • A leading manufacturer of automatic high - speed pick and place machine
    • The largest high - tech LED light making machine manufacturer in China

    Obtained a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights

    ETON Industrial Park

    • There is 50000 square meters modern intelligent Industrial parks , equipped with an advanced processing and manufacturing center
    • There are various types of machines , the fastest capacity reach 250000CPH, which is the fastest machine mounting speed in the world

    ETON Team

    • High service efficiency , there is service office in India .
    • Quality First , Client - oriented , Continuous Improvement .
    • 24 hours online for you to answer

    Package and delivery
    1.Standard export vacuum waterproof package
    2.Strong wooden package for ensure safely delivery of heavy and large equipment
    3.Delivery: By air, sea and railway.


    FAQ

    • Do you have oversea after sale service?

    We can offer technical support abroad. If you have any technical problem, our engineers

    will support you promptly.

    • How is the training?

    After buying our machines, you can send your engineers to our factory, or we send our

    engineer to your factory, and then we will train your people to operate these machines.

    • It’s hard to use the machine?

    No, not at all. For our previous clients, at most 5 days is enough to learn to operate the

    machines.

    • What’s the payment term? What about the trade term?

    T/T is OK. You can choose FOB Shenzhen
