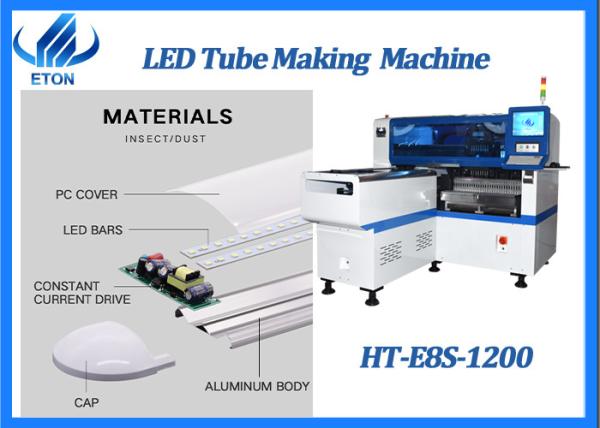

LED tube making mounter machine 45000CPH SMT assembly machine for LED light

    Buy cheap LED tube making mounter machine 45000CPH SMT assembly machine for LED light from wholesalers

    Buy cheap LED tube making mounter machine 45000CPH SMT assembly machine for LED light from wholesalers
    • Buy cheap LED tube making mounter machine 45000CPH SMT assembly machine for LED light from wholesalers
    • Buy cheap LED tube making mounter machine 45000CPH SMT assembly machine for LED light from wholesalers
    • Buy cheap LED tube making mounter machine 45000CPH SMT assembly machine for LED light from wholesalers
    • Buy cheap LED tube making mounter machine 45000CPH SMT assembly machine for LED light from wholesalers

    LED tube making mounter machine 45000CPH SMT assembly machine for LED light

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-E8S-1200
    Certification : CE, CCC, SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 days after receive the down-payment
    • Product Details
    • Company Profile

    LED tube making mounter machine 45000CPH SMT assembly machine for LED light

    LED tube making mounter machine 45000CPH SMT assembly machine for LED light


    Machines Window

    In order to meet the rapid development of the lighting industry market demand, research and

    development a multi-functional placement machine HT-E8S. HT-E8S is a new model pick and place

    machine of Eton company. This machine designed for many kinds of PCB boards. Using newest high

    magnetic linear motor, so the speed and accuracy is better than normal multi-functional machines.


    Technical parameter

    HT-E8S PICK AND PLACE MACHINE PARAMTER
    PCB Length WidthMax:1200*500mm Min:100*100mm
    PCB Thickness0.5-5mm
    PCB ClampingAdjustable pressure pneumatic
    Mounting ModeGroup Picking and separate placing/Separate picking and separate placing
    No. of camera

    2 Sets of imported camera

    Vision alignment, MARK correction

    Mounting precision±0.02mm
    Mounting Height〈15mm
    Mounting Speed45000CPH
    Power Consumption4KW
    Conveyor TransmissionMax Length:1200mm
    Transmission Speed>1000mm/sec
    Electrical controlIndependent research and development by ETON
    X.Y.Z Axis DrivingHigh-end magnetic linear motor + servo motor

    LED tube making machine line

    LED tube making machine SMT Line is included stencil printer machine, conveyor, pick and place machine, reflow oven machine.

    And this line is also not only suitable for making tube, but also could be produce other led lighting, like the Bulb, down-light, street light, panel light, driver board, etc.

    SMT Machine parameters

    Machine nameSemi-automatic stencil printer machine
    ApplicationApply to all kind of PCBA design
    FunctionPrinting solder paste on the PCB
    Max PCB600*350MM(Could be customized)

    Machine nameDOB Mounter machine
    ApplicationApply to all kinds of led lighting board and driver
    FunctionMounting SMD components on the PCB
    Max PCB450*350 MM

    Machine nameConveyor machine
    ApplicationApply to SMT Line/Production line
    FunctionBuffer/transport PCB between different machines
    Max PCB500*350MM(Could be customized)

    Machine nameReflow oven machine
    ApplicationApply to all kind of PCBA design
    FunctionSoldering PCB with SMD components
    Max PCB450mm width(Could be customized)

    Exhibition

    Our company participates in many exhibitions at home and abroad every year,

    You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.

    Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
