Products Description:
1. Dual arm magnetic linear motor LED high-speed pick and place machine
2.PCB Length Width: max 1200*330mm min 100*100mm
3. No. of feeders station: 68PCS
4.No.of nozzles:68PCS
5. Mounting components: LED 3014/ 3020/ 3528/ 5050 and capacitor, resistor, bridge rectifiers,etc.

Products features:
1. Dual arm magnetic linear LED high-speed pick and place machine
2. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.
3.Producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
4. Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately synchronously.
5. Calibration patent technology: group to take and group to mount.

Technical parameter

LED SMT line

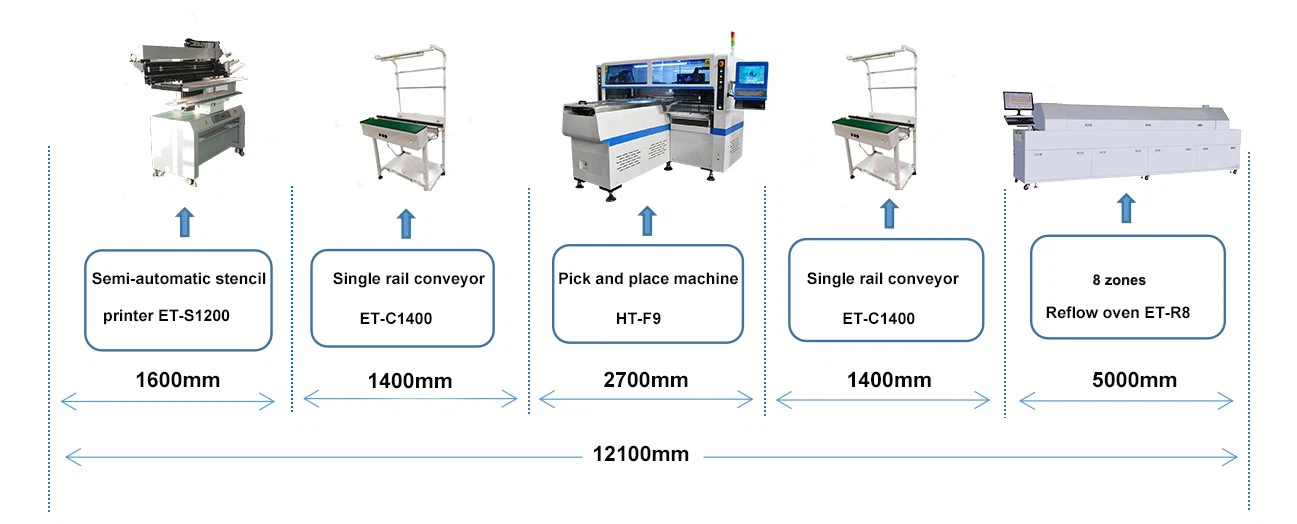

SMT line process: Solder paste printer - Singer conveyor - pick and place machine( HT-F9) - Singer Conveyor - Reflow oven machine.
The above machine and solution, ETON have solution for it. According to your actual situation.
Experienced for more than 10 years, Top brand of smt machine. Quality and service guaranteed!

Company
Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.

Service
Pre-sale
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;

On sale
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress

After sale
1. Arrange engineers to come to the factory to install, debug and teach free of charge;
2. One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
3. Every year there is an opportunity for free machine maintenance
4. Visit customers regularly to understand the usage of the machine and collect customer feedback.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
