    LED Tube Light Manufacturing Machine / Display Making Machine For PCBA SMT Line

    led light making machine led chip smd mounting machine

    Features of pick and place Machine

    High-speed multi-integrated machine,breaking through industry conventions, greatly improving mounting speed, accuracy and stability.


    ▇ Vacuum Sensing Device
    Each placement head with independent
    detection function, which improves the
    stability of the equipment and the
    reliability of the product.


    ▇ Ultra-high-speed Capability
    Adopting high-end magnetic linear motors and a
    multi-function Modular head, the placement
    capability has increased by 25% compared to
    traditional machines,with an optimum speed
    reaching 98000CPH

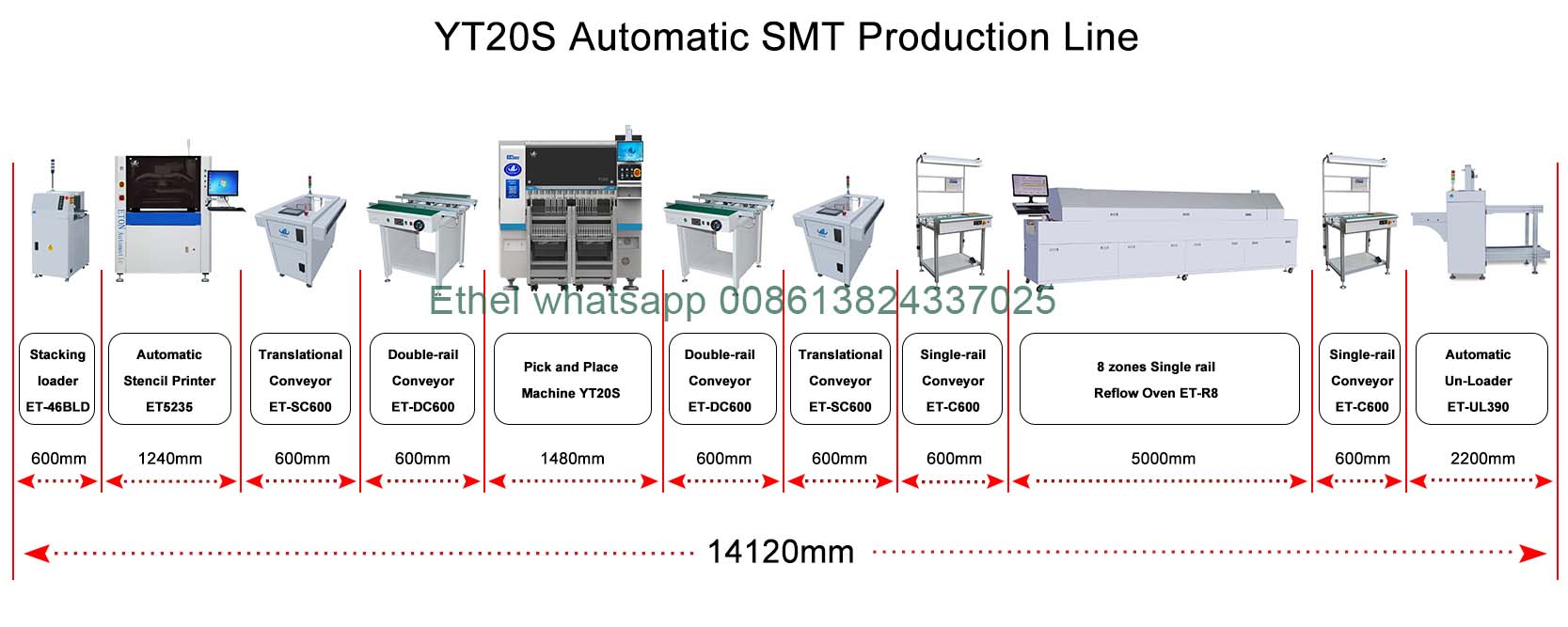

    Full automatic SMT line Solution



    In SMT Line, there are automatic stencil printer machine, pick and place machine, reflow oven machine, loader and un-loader machine. Different SMT line design will be little different. Some factory will using one automatic stencil printer machine for different SMT line. ETON will provide the professional suggestion for the line design.



    Technical Paremeter


    ModelYT20S
    Dimension
    Length1480mm
    Width2680mm
    Height1650mm
    Total Weight2380kg
    PCB
    PCB Length WidthMax:500*300mm(1200*450 option) Min:50*50mm
    PCB Thickness0.5-5mm
    PCB ClampingCylinder clamping, track width adjustable
    Mounting ModeGroup picking and separate placingseparate picking and separate placing
    O.S.
    SystemWindows7
    SoftwareR&D independently
    DisplayTouch screen monitor
    Input DeviceKeyboard, Mouse
    Vision System
    No. of Camera1 PCS (Head flight vision camera)
    2 PCS Mark camera
    Mounting PrecisionCHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ)
    Mounting Height≦16mm (Other height can be customized)
    Mounting Speed98000 CPH(Under best condition)
    Components0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized
    Components Speed0.2mm
    No. of Feeders Station104 PCS
    No. of nozzles20 PCS
    Power220AC 50HZ
    Power Consumption1.5kw
    Operating Environment23℃±3℃
    Transmission Speed>1000mm/sec
    Transmission DirectionSingle(left→ right or right→ left)
    Transmission ModeOnline drive
    Position ModeOptical
    Gas consumption0.4-0.6mpa (4-6kgf/cm2)600N/min
    Electrical controlIndependent research and development by ETON
    Motion control card module 1 setIndependent research and development by ETON
    X,Y,Z Axis Drive wayHigh-end magnetic linear motor
    Feeding wayIntelligent feeder with double motor
    Production management MES system interfaceCustomized

    Our Services



    What service you can enjoy if you purchase LED SMT pick and place machine from us:
    1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
    2) 24 hours online service and technical support, solve your questions quickly!
    3) Sound company organisation and working system, guarantee you a fast delivery!
    4) Supply you all the SMT proecssing related machines and devices with best prices!
