Multifunctional LED products SMT machine

Machine main features

Single module magnetic linear motor multifunctional pick and place machine.

Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.

Component: Min.size 0402. Max.height 15mm.

Application: power drive. electric board. Lens. DOB bulb. Linear bulb. Household appliance,etc.

Production parameter

Capacity

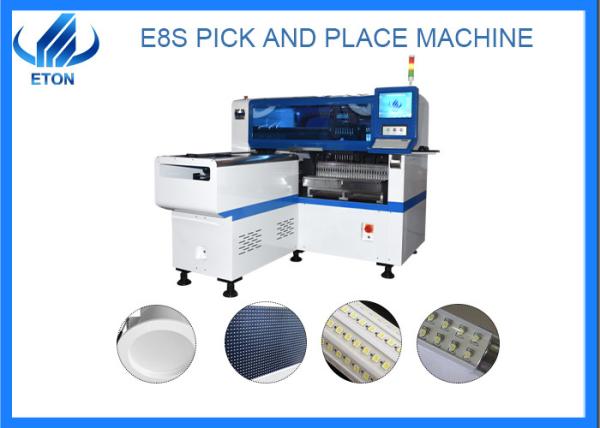

The HT-E8S-1200 SMT machine Use newest high magnetic linear motor, the speed and accuracy is better than normal machines. The mounting speed can reach 45000CPH, the actual capacity is about 60% of the optimal capacity.

The main factors affecting the productivity are: The time of the incoming and outgoing plates, whether the plates are received and delivered in time, whether the plates are delivered in time,

the number of plates put together, the number of heads used, the type of components, the number of components.

Company profile

ETON is the leading manufacturer of global photoelectronic high-speed pick and place machine . ETON enterprise was established in 2011. The company has SMT high-speed pick and place machine division,precision solder paste stencil printer division,high-speed precision dispensing equipment division and SMT peripheral automation equipment division. It has successfully developed a variety of cost- effective SMT high speed universal placement machine, which products widely used in lighting,Led display,home appliances,Electronics field.

SMT Machine

For SMT peripheral equipment: it is mainly included automatic Loader machine, Automatic stencil printer machine, Semi automatic stencil printer machine, Conveyor machine, Pick and place machine, Reflow oven machine, Un-loader machine, testing machine( SPI, AOI, X-RAY ) etc.

All of our SMT pick and place machine and SMT peripheral equipment is supported to customize according to the requirement of customers

LED Tube light production craft Introduction

Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.

Pick and place machine: Mount the electronic component at the specified position on the PCB.Reflow oven: Melt the solder paste and fix it to the mounting element.

Single conveyor: Inspect the quality of assembly and welding to cushion the production line.

Certificate

We got 9 invention patents, 112 practical patents,12 software patents.

Service

Maintenance period 1year

One year warranty, during warranty, any parts need to be repaired and replaced will be free.

Software and Hardware lifetime maintenance

Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.

Visit Regular Customers and Gather Information

Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback

customer suggestions in time.

Provide latest information about technology and equipment

We give professional technology suggestion with our clients.And share the updates news to our clients

FAQ

Q:Why choose us?

A: We provide professional in SMT line for 11 years,with strong production and strong capacity and R&D team,Has provided a lot of clients with modern SMT production line solutions.

Q: What about the shipping methods?

A: A variety of transportation methods for you to choose. By sea, air and road.

Q: Do you have service office in India?

A: Yes, we have service office in Deli and Mumbai,and we have three India local engineers can support quickly.

Q: What is the mounting modeof your SMT machine?

A: Our multifunctional pick and place machine can group picking and separately placing or separately picking and separately placing, high-speed pick and place machine can group picking and group placing.

Contact David

Whatsapp/Wechat/Tel: +86 13827425982

E-mail: david@eton-mounter.com

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
