Surface mount technology equipment

Specifications

Features

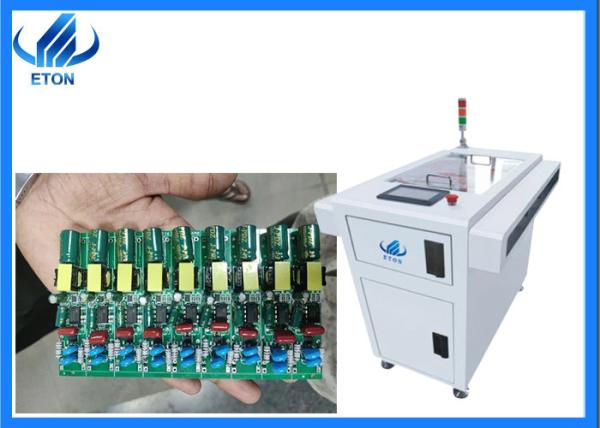

It is suitable for SMT production line to realize parallel load transfer between two positions for confluence or diversion.

(1) The frame is made of thickened sheet metal.

(2) Guide rail is made of special aluminum.

(3) The shifting action is driven by a stepper motor.

(4) The track is driven by a stepper motor.

(5) Panasonic PLC programmable controller control.

(6) Touch screen operation (display control).

(7) Single/double shift trolley is optional.

(8) Single/double track operation structure is available.

(9) Compatible with SMEMA interface.

(10) Smooth design buffer deceleration.

(11) A variety of length shifts are available.
