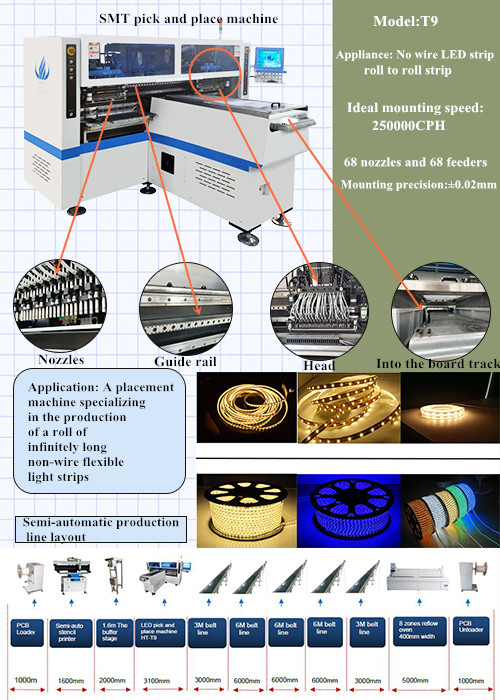

250000 CPH SMT Machine 68PCS Head Dual Arm pick and place machine

Product Description and Advantages

1,The SMT high speed mounter HT-T9 is designed with 68 suction nozzles and 68 feeding stations. It is controlled by two arms, with 34 suction nozzles controlled by one arm each. Among them, 34 suction nozzles are divided into two groups, each with 17 nozzles, and each group is jointly controlled by a servo motor and a corner motor.

2,The four different materials of a product can be pasted simultaneously, which can accelerate product production without affecting high productivity.

3,The mounter HT-T9 is suitable for one-time mounting of soft light strips with a length of 5 meters, 20 meters, 50 meters, or even more.

4,During mounting, a single plate of material can be attached separately, and the same plate of material is always attached to the same light bar.

5,Calibration automatically,high precision,available for RGB.

6,Exclusive patent technology:group to take and group to mount.

Specification

Company Introduction

ETON mission: professionalism, excellent technology, sharing results.

ETON goal: to create a national brand and build an international Chinese enterprise.

ETON purpose: to create value for customers and create benefits for the society.

ETON vision: determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.

Service

Certificates

ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.

About flexible strip

A soft strip is a special process for soldering a light onto a copper wire or ribbon-shaped flexible circuit board, and then connecting it to a power source to emit light.

About SMT status

First stage (1960-1975) : Miniaturization, hybrid integrated circuit (calculator, quartz watch)

Phase II (1976-1980) : Reduced size, enhanced circuit functionality (camcorders, VCRS, digital cameras)

The third stage (1980-1995) : reduce costs, vigorously develop production equipment, and improve product cost performance (very large scale integrated circuit)

Current stage (1995-present) : micro-assembly, high-density assembly, three-dimensional assembly

FAQ

Q: What is your actual speed of your products?

A: For the actual speed of the machine which is constrained by many factors,that relatedto the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.

Q: Can I go and see if you have sold the equipment to India?

A: Yes, we have sold our machine in India, but for the fact we can't decide it for our customer, but I will try to contact our customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.

Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
