Cost-effective 10 heads SMT mounter machine

Key words: 10 heads smt mounter/ cheap smt mounter/pcb smt mounter

Machine features

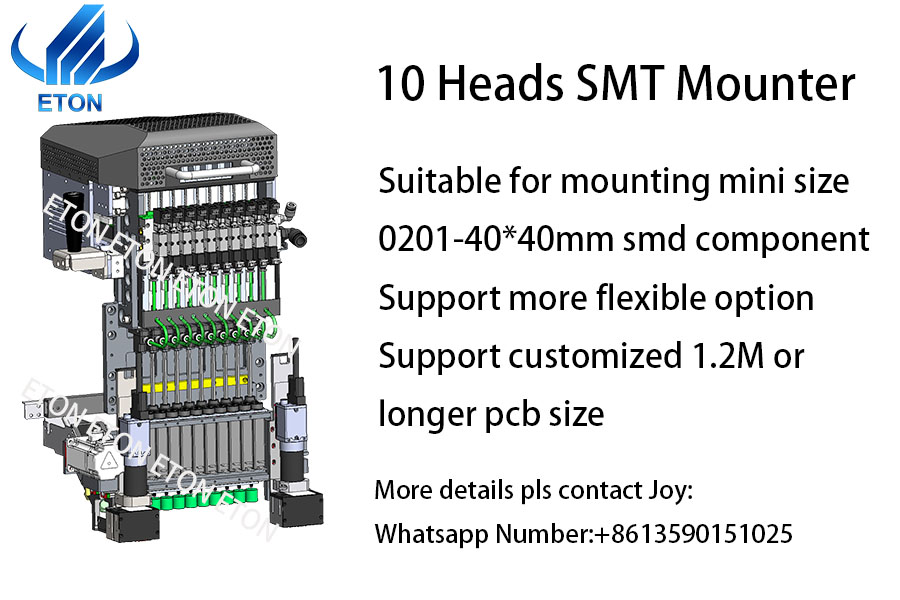

Integrated Placement Head

Lightweight, with an integrated head design and 10 sets of Z axes independently controlled by modular magnetic linear motors, resulting in significant improvements in speed, accuracy and stability

Precision Corner System

10 heads per module, The modular corner system independently controls the angle of each component to ensure high-precision placement.

Vacuum Sensing Device

Each placement head with an independent detection function, which improves the stability of the equipment and the reliability of the product.

Fly Vision Camera

The integrated flying recognition camera shortens the vision routine time, after head picking , scanning and moving working at the same time. Support recognize smd component from 0201-15*15mm

Double Mark Recognition

Adopt 3-color illumination recognition, apply to any shape Mark and LENS(Blue-Ray scan), wider range of applications

Fixed flight vision camera (optional)

A fixed vision camera could quickly capture multiple head images at once and perform visual calibration of image position, alignment correction, and adjustable light source brightness. Support recognize smd component from 0201-40*40mm

Fixed Feeder Station

Standard fixed feeder station number 52 pcs, meet most of electric pcb mounting required

Double Side Feeder Station (Optional)

Support Double side feeder station option, maximum feeder number could reach 104 pcs.

ETON R&D Electric Feeder Design

Using ETON advanced new double head electric feeder design, precision and support for 0201 tiny component feeding. By optically correcting the feeding position of the component, achieve stable, accurate and high-speed feeding

Machine main parameter

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
