Brand Name : | ETON |
Model Number : | HT-E8D-1200 |
Price : | FOB USD 50000~80000/sets |
Payment Terms : | T/T |
Supply Ability : | 50 sets per mouth |
Delivery Time : | 30 work days after deposit |

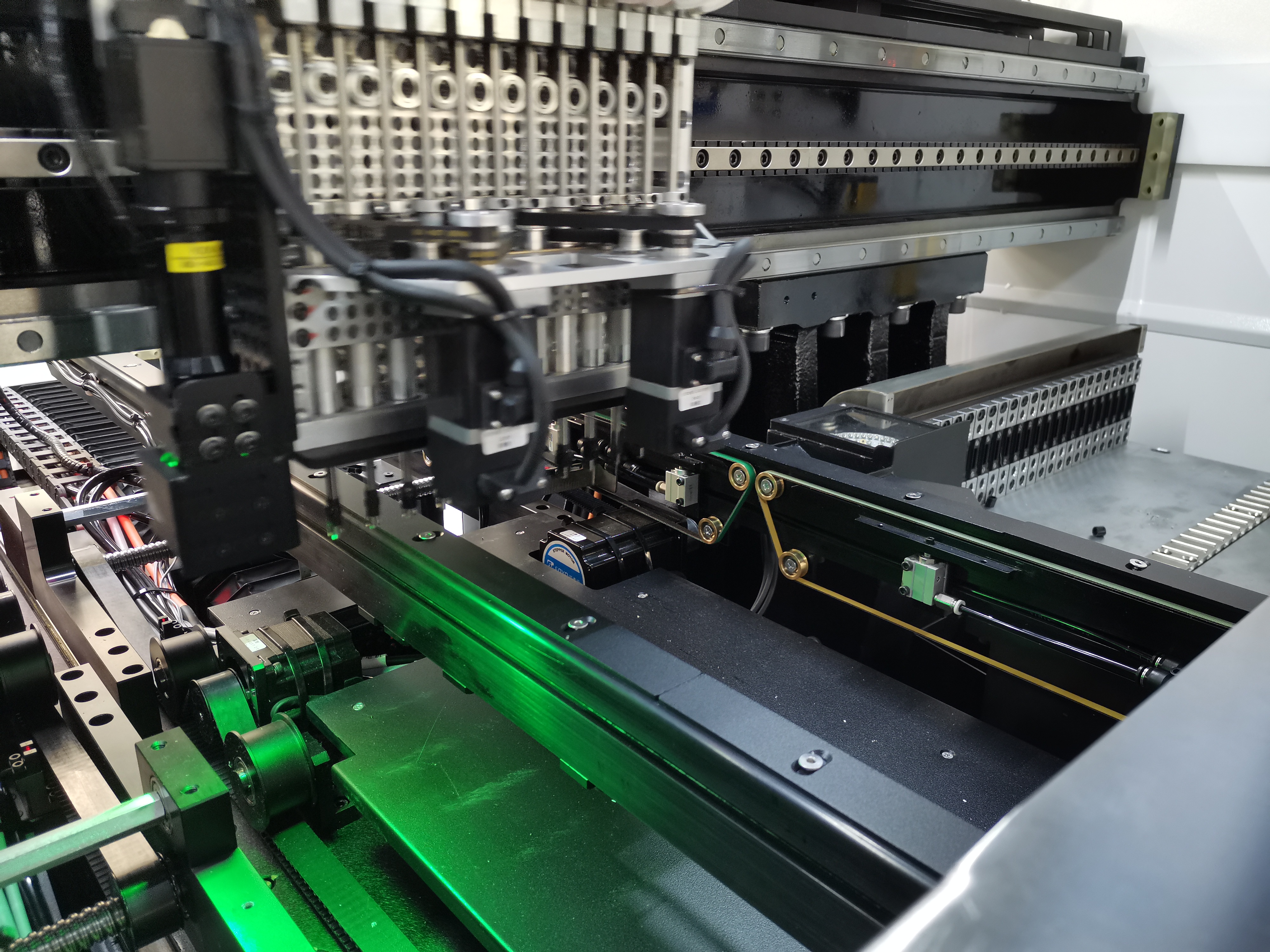

Flight Identification Visual Alignment System Pick and Place Machine with High Stability and Precision
Product Feartures of SMT machine
Double module magnetic linear motor+servo motor
Electric Feeder feeding System
Non stop material re-loading function
Auto-optimization after coordinates generated
Conponent:0402,LED chip,capacitor,resistor,lens,IC ,shape compoents,etc
HT-E8D-1200 PICK AND PLACE MACHINE
Thechnical Parameter
Model | HT-E8D-1200 | HT-E8D-600 |
PCB size | Max:1200*300mm min:100*100mm | Max:600*300mm min:100*100mm |
PCB clamping | Adjustable pressure pneumatic | |
Mounting speed | Optimal speed 90000CPH | |
Power & power consumption | 380V AC 50HZ 8KW | |
Feeder station | 48PCS | |
Head | 24PCS | |
GAS consumption | 0.4~0.6mpa | |
Transmission direction | Both direction(Option) | |
X,Y,Z axis drive way | High end magnetic linear motor +servo motor |
Machine Features
Vision System
4 sets of digital Camera,Vision for the flight identification,Mark Correction
Electric Feeder feeding System
Feeding way:Electric feeder with Double motor
Feeder station:48 PCS
Feeding Type:electric feeder;IC tray;Vibration Feeder
Dual module System
To produce two different products at the same time
Double mounting module
Save time and places
Application
