    High Efficiency No Waterproof LED Strip Light Rolling Machine 220V 50-60HZ ET-500

    Ask Lasest Price
    Brand Name : ETON
    Model Number : ET-500
    Certification : CE,CCC,SIRA,ISO
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

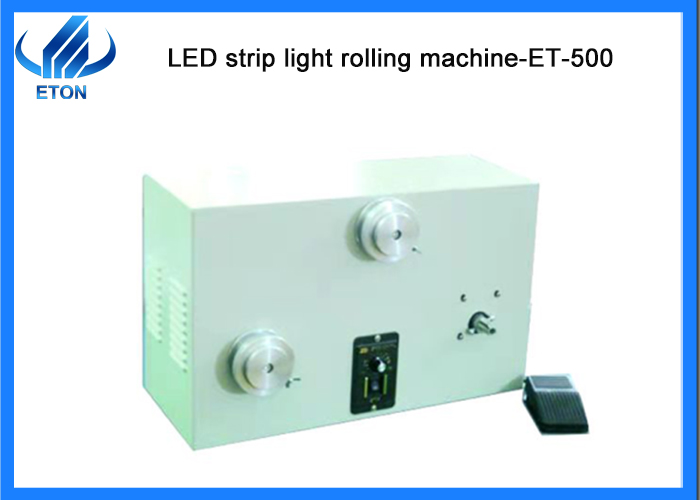

    High Efficiency No Waterproof LED Strip Light Rolling Machine 220V 50-60HZ ET-500

    high efficiency no waterproof LED strip light rolling machine


    Parameter:

    • Outside Size:450*250*290(MM)
    • Input Voltage:220V,50-60HZ
    • Power:15W
    • Weight:about 8 KG

    Main Function:

    • The machine may manufacture’s led strip light’s wide range: 0~ 25mm. Assembling 3M double adhesive type and led Strip light
    • The machine may manufacture led strip light type: waterproof, no waterproof, have the PVC cover or not led strip light.
    • The Production capacity is 1000 Meter/per hour on the basis of skillful worker.
    • The efficiency is double than last machine. And save one worker. And easy, fast.
    • The machine’s reel has Clockwise and counterclockwise direction, the aim is that led inside or outside
    • May adjust the manufacturing speed.
    • Operate the machine’s process is very easy, When the strip light is distorted, may use foot to stop it.
    • The efficiency is high and reduce the worker’s repetitive movement.

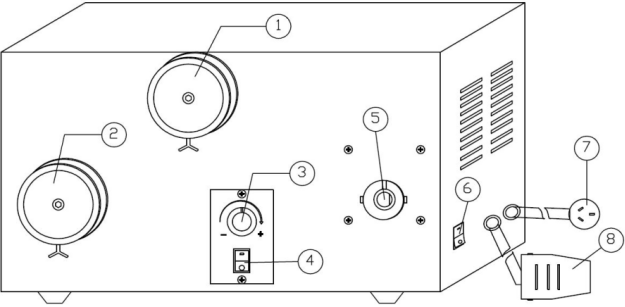

    Machines parts notes

    • May use the structure to adjust the force on the basis of strip light’s width.
    • Fix 3M double adhesive type
    • Adjust speed button
    • Power Switch
    • Fix Reel position, Automatic run.
    • Direction Switch, The direction is clockwise when position, or not will be counterclockwise.
    • 220V Power input line, three phase.
    • Foot Switch, Control the machine’s movement or not.


    Shipping and Delivery

    Land transportation: suitable for inland countries and it is affordable;

    Air freight: for urgent good, and it is the most expensive transportation way;

    Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

    Our advantage

    We can provide SMT line solution for you!


    Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc

    1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.

    2.Provide Overseas engineers for Free installation and free training.

    3.TOP brand of China SMT machine manufacturer,500 employees for ETON

    Related machine

    We can provide a whole SMT production line,led light production line:

    1.Pick and place machine

    2. Loader machine

    3. Conveyor machine

    4. Stencil printer machine

    5. Reflow oven machine

    6. Unloader machine

    7. Solder paste mixer

    8. Roll to roll led strip light assembly machine

    FAQ


    Q. What is your actual speed of your products?

    A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.


    Q. How many components can your pick and place machine mount in a PCB board?

    A. While this is for our clients needs and the size of the PCB board.


    Q: Do you have oversea after sale service?

    A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.
