    Factory directly supply PCB assembly machinery SMT pick and place machine with 45000CPH

    Factory directly supply PCB assembly machinery SMT pick and place machine with 45000CPH

    Product presentation

    The machine HT-E8S is highspeed machine,the optimum speed is 45000 CPH.
    The X axis is magnetic linear motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
    Its high precision,adopt magnetic linear motor.

    Exclusive patented technology
    Electric feeder feeding system
    Vision alignment flight identification,Mark correction
    Non -stop material re-loading function
    Auto optimization after coordinates generated etc


    Technical parameter

    ModelE8S-1200
    Dimension
    Length2550mm
    Width1650mm
    Height1550mm
    PCB
    PCB length width

    Max:1200*500mm
    Min:100*100mm

    PCB thickness0.5-5mm
    PCB clampingAdjustable pressure pneumatic
    Visual system
    No.of camera2 sets of imported camera
    Mounting precisionPlus or minus 0.04 mm
    Mounting speed45000 CPH
    Nozzles12 PCS
    Feeder station28 PCS
    Feeding wayElectric feeder with double motor
    X,Y,X axis drive wayHigh-end magnetic linear motor+servo motor


    Feeding system

    No.of feeders station28 PCS single module
    No.of nozzles12 PCS single module
    Feeding wayElectric feeder with double motor
    X,Y,Z Axis drive wayHigh-end magnetic linear motor+servo motor


    Application

    Our machine E8S-1200 suitable for mounting many kind of led lighting,such as led bulb,panel,DOB,strip light,tube,display,down-light,streetlight,etc.One module meet all your need.

    X Axis 45000CPH led bulb making machine led light making machine SIRA electric feeder 0Factory directly supply PCB assembly machinery SMT pick and place machine with 45000CPH

    Introducing Brand

    50000㎡ Industrial Park
    45000㎡ Workshop
    China Top Brand
    China high-tech enterprise
    Leading manufacturer of SMT machine
    X Axis 45000CPH led bulb making machine led light making machine SIRA electric feeder 1Factory directly supply PCB assembly machinery SMT pick and place machine with 45000CPH

    Transportation advantage
    By sea: it’s convenience,cheapness,and strong carrying capacity
    By railway: it’s economical and affordable,with large transportation capacity,which is more suitable for inland countries.
    By air: it’s convenient and fast,which is more suitable for urgent items.

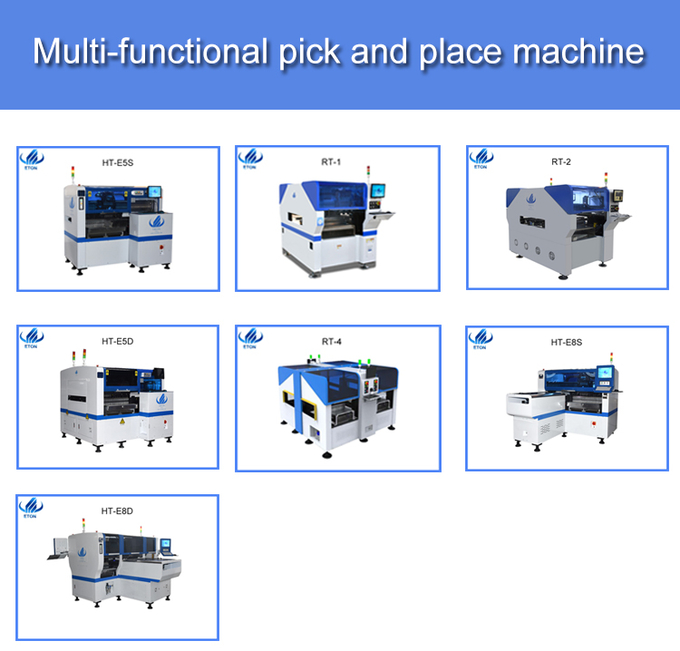

    Our company’s multifunctional machine

    X Axis 45000CPH led bulb making machine led light making machine SIRA electric feeder 2Factory directly supply PCB assembly machinery SMT pick and place machine with 45000CPH



    SMT line

    X Axis 45000CPH led bulb making machine led light making machine SIRA electric feeder 3Factory directly supply PCB assembly machinery SMT pick and place machine with 45000CPH

    Service
    Maintenance period 1 year
    One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
    Software and hardware lifetime maintenance
    Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
    Visit customers regularly and gather information
    Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
    Provide the latest information about technology and equipment
    We give professional technology suggestions to our clients. And share the updated news with our clients.


    FAQ
    Q: What’s the terms of payment? What about the trade term?
    A: T/T is OK. You can choose FOB Shenzhen.

    Q: What’s your delivery time?
    A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.

    Q: Is there any quality guarantee?
    A: We stick to quality first, client-oriented, Continuous improvement!

    Q: Is your software interface in English?
    A: English interface and Chinese interface are both available.

    Q: It’s hard to use the machine?
    A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
