    High Speed 180K CPH SMT Machine 34 Heads For LED Tube Panel Light

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-F7S
    Certification : CE,CCC,SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    High Speed 180K CPH SMT Machine 34 Heads For LED Tube Panel Light

    High speed 180K CPH 34 heads for LED tube panel light SMT machine


    Description

    • High-end magnetic linear motor+ servo motor
    • Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of materials with high capacity. available for board with any proportion of LED chip and resistor.
    • Two mounting modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
    • Exclusive patent technology: Group to pick and group to mount.

    IPC9850 Capacity: 150000-180000 CPH

    Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0


    Technical parameter

    ModelHT-F7S
    Total Weight1700kg
    PCB
    PCB Length WidthMax:1200*330mm Min:100*100mm
    PCB Thickness0.5-5mm
    Mounting Precision±0.02mm
    Mounting Height≦5mm
    Mounting Speed150000~180000 CPH
    ComponentsLED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
    Components Speed0.5mm
    No. of Feeders Station68 PCS
    No. of nozzles34 PCS
    Power380AC 50 HZ
    Power Consumption6kw
    Transmission SpeedMax Length :1200 mm
    X,Y,Z Axis Drive wayHigh-end magnetic linear motor+ servo motor
    Feeding wayElectric feeder with double motor

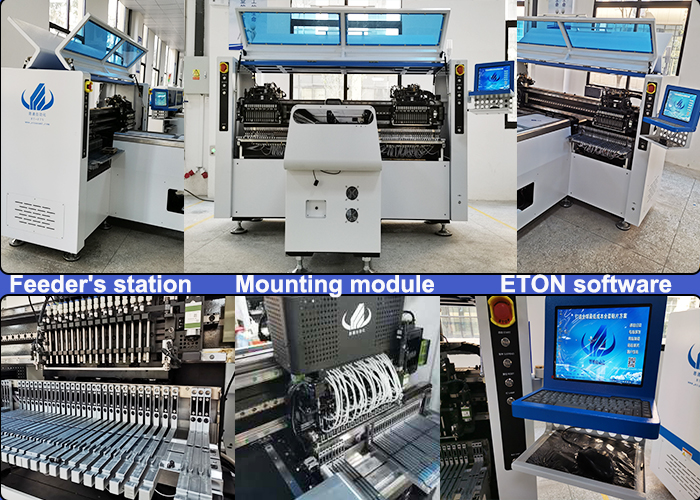

    Machine main part

    Machine application

    Application: apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. And also suitable for mounting tube, panel light ,bulb etc.

    PCB size: Max:1200*330mm;Min:100*100mm.

    Shipping and Delivery

    Land transportation: suitable for inland countries and it is affordable;

    Air freight: for urgent good, and it is the most expensive transportation way;

    Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

    Our advantage

    • Focusing on SMT high speed pick and place machine more than 20 years
    • The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
    • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

    FAQ

    Q. Is the machine easy to operate?

    A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.


    QWhat kind of machine you have?

    A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
