0.02mm Chip Precision SMD Mounting Machine HT-F7 Mounting Speed 100000-150000 CPH

    Buy cheap 0.02mm Chip Precision SMD Mounting Machine HT-F7 Mounting Speed 100000-150000 CPH from wholesalers

    Buy cheap 0.02mm Chip Precision SMD Mounting Machine HT-F7 Mounting Speed 100000-150000 CPH from wholesalers
    • Buy cheap 0.02mm Chip Precision SMD Mounting Machine HT-F7 Mounting Speed 100000-150000 CPH from wholesalers

    0.02mm Chip Precision SMD Mounting Machine HT-F7 Mounting Speed 100000-150000 CPH

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-F7
    Certification : CE CCC ISO
    Price : US $85,000-86,000 / Units
    Payment Terms : T/T
    Supply Ability : 50
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    0.02mm Chip Precision SMD Mounting Machine HT-F7 Mounting Speed 100000-150000 CPH

    F7: Mounting Module Speed Capacity Reach 150000 CPH For LED Mounting Machine

    Product Description

    F7: Mounting Module Speed Capacity Reach 150000 CPH For LED Mounting Machine


    Features

    Double module professional high speed mounter

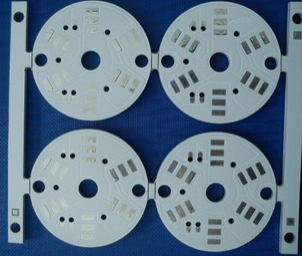

    Apply to the 0.6M,0.9M,1.2M hard light board and 0.5M, 1M LED soft lamp strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor. Two mounting part, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.

    Correction automatically, high precision, available for RGB

    Global first technology patent: counterfeiting not allowed

    IPC 9850 Capacity:150000-170000 CPH

    Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0

    ZL 2012 2 0178869.1 ZL 2012 2 0415505.0

    ZL 2012 2 0415044.7 ZL 2012 2 0415356.8

    ZL 2012 2 0415061.0

    Company Information


    Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

    "No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.

    Eton mission: professional, excellent technology, sharing the results.

    Eton goal: to create a national brand, build international Chinese enterprise.

    Eton purpose: to create value for customers, creating benefits for society.


    Technical Parameter

    led bulb assembly machine/smt production line

    DimensionLength2700MM
    Width2450MM
    Height1530MM
    Total Weight1400 kg
    PCBPCB length widthMax:330*1200 mm Min:330*80 mm
    PCB thickness0.5~5mm
    PCB ClampingAdjustable pressure pneumatic.
    Mounting ModeGroup to pick and group to mount
    O.S.systemWindows7
    softwareR&D independently
    DisplayLED Monitor
    Input DeviceKeyboard, Mouse
    Feeding systemNo. of feeders68 PCS
    No. of nozzles34 PCS
    Feeder typeElectronic feeder
    Vision SystemNo. of Camera5 sets of imported camera
    Vision for the flight identification + MARK correction
    Mounting Precision±0.02mm chip
    Mounting Height<15mm
    Mounting Speed100000-150000CPH(optimum)
    ComponentsLED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
    Components Space0.2mm
    Power220AC 50HZ
    Power Consumption5 kw
    Operating Environment23±3
    Conveyor TransmissionMax Length:1200 mm
    Transmission Speed>500mm/sec
    Transmission DirectionSingle(left→right or right→left)
    Transmission ModeOnline drive
    Air pressure>5.0kg/cm2
    Air consumption<100 L/min
    Electrical controlIndependent research and development by ETON
    Motion control card module 2 setsIndependent research and development by ETON
    X,Y Axies DrivingServo motor control for X, Y, Z axies.


    FAQ

    Q: What are your advantages?

    Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

    Q : Is there any quality guarantee?

    We stick to quality first, client-oriented, Continuous improvement!

    Q: What is SMT Machine?

    This is an LED lamp patch machine using surface mount technology.

    Q: Whether the machine's after-sale service is guaranteed?

    Each of our machines has a one-year warranty and will regularly visit customers for use.


    Our Services


    Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

    Upgrade the software will be free

    Visit customer regularly and gather information.

    Provide latest information about technology and equipment.


    Packaging & Shipping

    We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.


    Quality Principle:

    Quality First, Client-oriented,

    Continuous Improvement!


    About Exhibition


    About our Client


    If you are interested in our products, please feel free to contact me and I will be happy to answer any questions you have!


    How to contact us ?


    CompanyShenzhen Eton Automation Equipment Co., Ltd
    AddressThe 44th Bld.,The 5th.Huaidecuigang Industrial area,Fuyong,Bao'an,Shenzhen,China
    Mobile+86 13652436725
    Wechat+86 13652436725
    QQ1762937684
