Feeders Station SMT Mounting Machine LED Monitor Display 220AC 50HZ 5kw Power

    Buy cheap Feeders Station SMT Mounting Machine LED Monitor Display 220AC 50HZ 5kw Power from wholesalers

    Buy cheap Feeders Station SMT Mounting Machine LED Monitor Display 220AC 50HZ 5kw Power from wholesalers
    • Buy cheap Feeders Station SMT Mounting Machine LED Monitor Display 220AC 50HZ 5kw Power from wholesalers
    • Buy cheap Feeders Station SMT Mounting Machine LED Monitor Display 220AC 50HZ 5kw Power from wholesalers

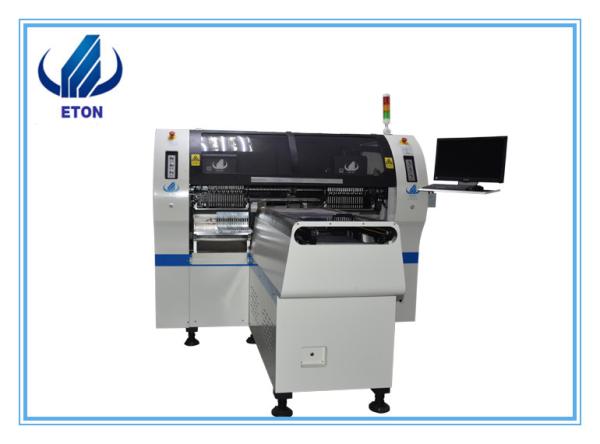

    Feeders Station SMT Mounting Machine LED Monitor Display 220AC 50HZ 5kw Power

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-XF
    Certification : CE CCC ISO
    Price : US $75000 - 76000 / Unit
    Payment Terms : T/T
    Supply Ability : 50
    Delivery Time : 30
    • Product Details
    • Company Profile

    Feeders Station SMT Mounting Machine LED Monitor Display 220AC 50HZ 5kw Power

    Capacity reach 170000 CPH With PCB Length Width is 350*1200 mm.

    Company Profile


    Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
    "No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
    Eton mission include professional, excellent technology, sharing the results.
    Eton goal include to create a national brand, build international Chinese enterprise.
    Eton purpose include to create value for customers, creating benefits for society.

    Technical Parameter
    led bulb assembly machine/smt production line

    PCBPCB length widthMax:330*1200 mm Min:80*120 mm
    PCB thickness0.5~5mm
    PCB ClampingAdjustable pressure pneumatic.
    Mounting ModeGroup to pick and group to mount
    O.S.systemWindows7
    softwareR&D independently
    DisplayLED Monitor
    Input DeviceKeyboard, Mouse
    Feeding systemNo. of feeders34PCS
    Feeder typeElectronic feeder
    Vision SystemNo. of Camera5 sets of imported camera
    Vision for the flight identification + MARK correction
    Mounting Precision±0.02mm chip
    Mounting Height<15mm
    Mounting Speed150000-170000CPH(optimum)
    ComponentsLED 3017/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
    Components Space0.2mm
    Power220AC 50HZ
    Power Consumption5 kw
    Operating Environment23℃±3
    Conveyor TransmissionMax Length:1200 mm
    Transmission Speed>500mm/sec
    Transmission DirectionSingle(left→right or right→left)
    Transmission ModeOnline drive
    Air pressure>5.0kg/cm2
    Air consumption<100 L/min
    Electrical controlIndependent research and development by ETON
    Motion control card module 2 setsIndependent research and development by ETON
    X,Y Axies DrivingServo motor control for X, Y, Z axies.



    Apply to the 0.6M,0.9M,1.2M LED hard board 0.5M, 1M LED soft lamp strip 17 nozzles for each mounting part, part A of B can be mounted separately of synchronously.
    Correction automatically, high precision, available for RGB
    Global first technology patent: counterfeiting not allowed

    Packing & Shipping

    Package: Standard export package(Wooden case with vacuum package)

    Shipping: Shenzhen port within 15 days after payment


    About the quality:

    Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
    Upgrade the software will be free
    Visit customer regularly and gather information.
    Provide latest information about technology and equipment.

    FAQ

    Q: What are your advantages?
    Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
    Q : Is there any quality guarantee?
    We stick to quality first, client-oriented, Continuous improvement!
    Q: What is SMT Machine?
    This is an LED lamp patch machine using surface mount technology.
    Q: Whether the machine's after-sale service is guaranteed?
    Each of our machines has a one-year warranty and will regularly visit customers for use.

    Imported Equipment


    The screw is the Japanese Kuroda
    Spline is Korean
    The motor is Fuji of Japan
    The camera is German


    How to contact us?

    CompanyShenzhen Eton Automation Equipment Co., Ltd
    AddressThe 44th Bld.,The 5th.Huaidecuigang Industrial area,Fuyong,Bao'an,Shenzhen,China
    Mobile+86 13652436725
    Wechat+86 13652436725
    QQ1762937684
