Company profile
Shenzhen Eton Automation Equipment Co.,Ltd mainly takes
professional, efficient and low consumption SMT full- automatic
high-speed laminating machine as its responsibility, national
high-speed technology enterprise integrating product development,production,sales and service.
Quality Principle:
Quality First, Client-oriented,
Continuous Improvement!
Features
Producing with 2-4 types of materials with high capacity, avaible
for 5M, 50M or any length of soft lamp strip continuously. Two
model,f 15 nozzles or each mounting part, part A or part B can be mounted separately
or synchronously. Global first technology patent: counterfeiting
not allowed.
IPC 9850 Capacity:100000-150000 CPH
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
Technical Parameter
led bulb assembly machine/smt production line
| Soft lamp strip | Wire plate size | 250MM* any length |
| Wire plate thickness | 0.5~5mm |
| Wire plate clamping | Adjustable pressure pneumatic. |
| Mounting Mode | Group to pick and group to mount |
| O.S. | system | Windows7 |
| software | R&D independently |
| Display | LED Monitor |
| Input Device | Keyboard, Mouse |
| Feeding system | No. of feeders | 60 PCS |
| No. of nozzles | 30 PCS |
| Feeder type | Electronic feeder |
| Vision System | No. of Camera | 5 sets of imported camera |
| Vision for the flight identification + MARK correction |
| Mounting Precision | ±0.02mm chip |
| Mounting Height | <15mm |
| Mounting Speed | 100000-150000CPH(optimum) |
| Components | LED 3014/3020/3528/5050 and resistor, capacitors, bridge
rectifiers. |
| Components Space | 0.2mm |
| Power | 220AC 50HZ |
| Power Consumption | 5 kw |
| Operating Environment | 23℃±3 |
| Conveyor Transmission | Belt drive |
| Transmission Speed | >500mm/sec |
| Transmission Direction | Single(left→right or right→left) |
| Transmission Mode | Online drive |
| Air pressure | >5.0kg/cm2 |
| Electrical control | Independent research and development by ETON |
| Motion control card module 2 sets | Independent research and development by ETON |
| X,Y Axies Driving | Servo motor for closed-loop feedback control for X,Y axies |
Packing & Shipping
We use standard export packing(wooden case with vacuum packing)and
deliver the goods at ShenZhen port 15days after payment.
After Sales Service
Maintenance Period: 1 year.(whole machine, any parts need to be
repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.

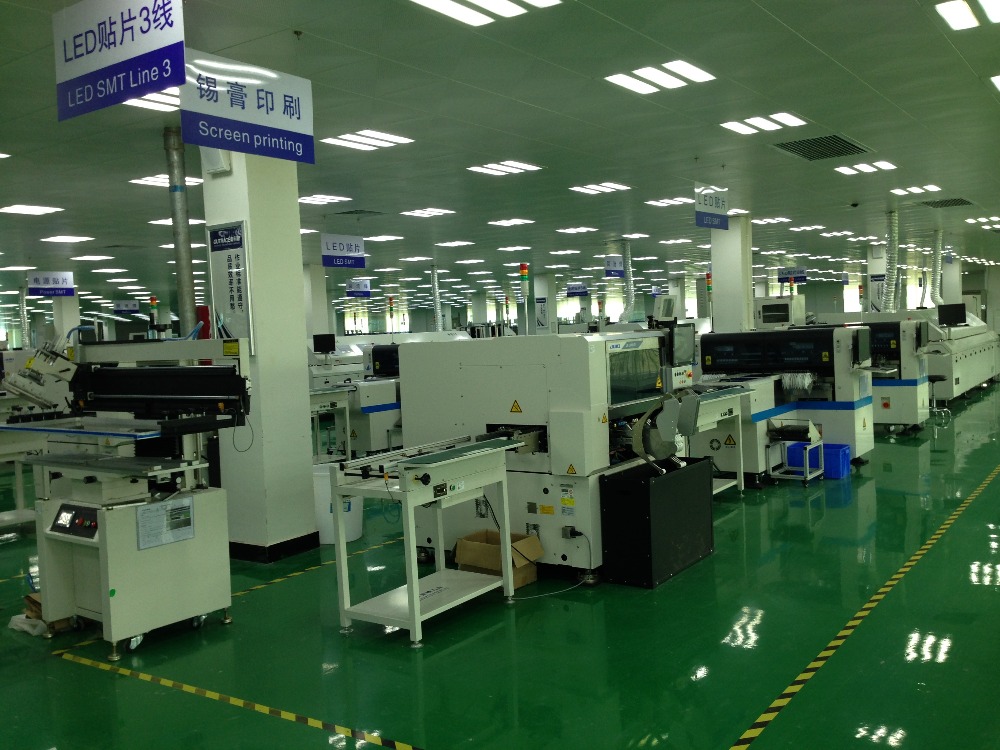

Our Client
Long flexible strip(without cable)
Many high speed mounter—one reflow oven.
FAQ
Q: Why choose us ?
We adopt professional, high efficiency, low consumption and
specialized in research and development, production, sales and
service of SMT high-speed SMT machine automation.
Q: What is your delivery date?
The delivery date is about 15 days after receipt of payment.
Q: What's the credibility of your brand?
Our company stick to sincere business, focus on R&D,
manufacturing intentions, considerate service, customer trust.
Q:What are the main LED products do our machines for?
There are different machines in our company, and different machines
apply to different LED lights and components. The main products we
can apply: bulb, tube, strip, lamp, panel. Down light, streetlight,
ceiling light. wall washer light, power, driver, lens and so on.
