Product Description:
SMT LED machine ,SMT LED pick and place machine ,LED light
production machine ,LED light assembly machine
1 .Features :
The HT-XF (The fifth generation high-speed LED pick and place
machine of ETON ) is hot-selling . "ETON Automation " brand was
awarded "Shenzhen TOP brand " high-tech enterprises .
♦ Auto-optimization feature after coordinates generated
♦ The Global fastest machine ,speed reach 150000CPH
♦ It can produce different kinds of LED light ,display etc .
Apply to tube ,bulb ,strip ,lamp ,panel ,ceiling light ,down light
,screen ,street light ,flood light ,display etc .
Apply to LED chip ,capacitors ,resistors ,shaped components etc .
(intelligent ,use widely )
34 heads altogether ,34 feeders ,partA or partB work separatly .
Easy to operate .
2 .Technical Parameter:
| Name | HT-XF |
| Max applicable PCB | 330mm*1200mm |
| Placement head quantity | 34 |
| Positioning accuracy | 0.02mm(repeat precition) |
| Max capability | 150000~170000CPH |
| Motor control scheme | servo motor |
| Applicable Components | 3014/3528/5050/5630/5730/7020/4014 etc. |
| Feeders number | total=34 8mm=34, 12mm=34 |
| Visual system | Four cameras |
| UP Visual system | Automatic identify the centre of components |
| Down Visual system | Automatic identify mark |
| Vacuum pump | 0.5MPA (Mute type pump) |
| Power | 5KW |
| Power Supply | AC220V |
| Net Weight | 1300kg |
| Support software | R&D by ETON |
3 .Our Advantage:
Date Analysis Compared with other Manufacturers
| Manufacturers/Parameter | Speed | Head | Precision | Patent | service |
| Other company F130 | 15000CHP | 4PCS | 0.03mm | __ __ | NO |
| Other company 5M168 | 18000CHP | 6PCS | 0.03mm | __ __ | NO |
| Our Eton HT-XF | 150000~170000CPH | 34PCS | 0.02mm | Technology Patents | service office |
| Our Eton HT-T7 | 100000~130000CPH | 60PCS | 0.02mm | Technology Patents | service office |
| Our Eton HT-E8T | 80000CPH | 16PCS | 0.02mm | Technology Patents | service office |
| Data Comparision | 4 to 8 times higher than others | 4 to 8 times higher than others | higher precision | Global First | Support promptly |

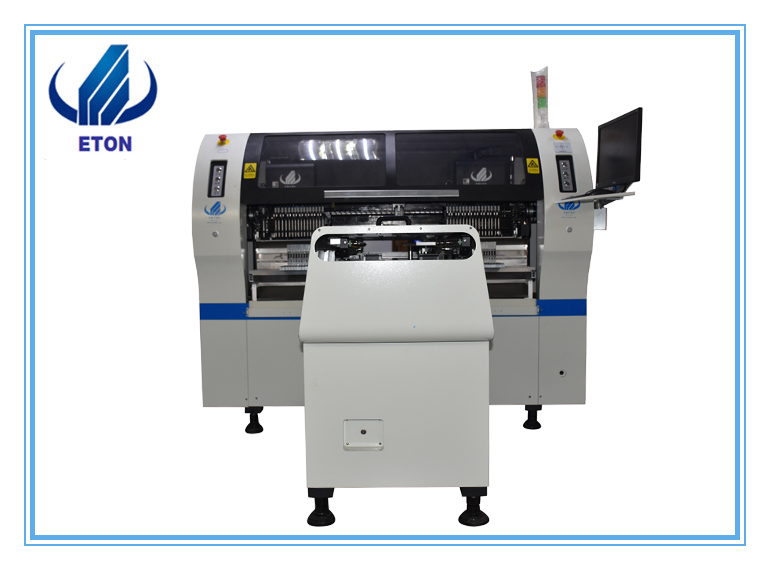

4 .Product Image:
5 .Company Information
Company Profile :
The Global Largest Production Capacity Supplier of LED Production
Line
It is well-known that ETON is the leading SMT factory solution
provider in China ,offering professional SMT factory building
technical support and service .We have more than 10 years
experience about SMT factories ,offering full solution for global
clients with our advantaged sources in China . Our core technology
team members are all from USA ,TAIWAN ,HK and MAINLAND ,we not only
provide a full set of equipments ,we also provide full smt
technical support and services ,Besides we give customers more
reasonable and professional suggestions .We have already helped
many customers to establish factories in LED , TV , Phone , Display
, EMS and other filed around the world ,we are worthy of
trust!Professional is our truth .
6 .Packaging and Shipping
Package : Standard export package (Package as per customer's
requirement )
The normal package is vacuum wooden box.If container is too tigher
,we will use PE film for packing or pack it according to customers
special request .
Shipping : Shenzhen port within 4 weeks after payment
7 .Our Services
Excellent Service :
Pre-Sales Service
* Inquiry and consulting support.
* Sample machine testing support
* View our Factory
After-Sales Service
* Training how to instal the machine, training how to use the
machine
* Engineers available to service machinery overseas
8 .Patents Certifications :
All of our machines have passed CE ,ISO9001 ,CCC ,SIRA and have own
the global first technology patent .
Our company have entered markets in USA ,KOREA ,CERMANY ,INDIA
,EGYPT ,BRAZIL ,VIETNAM ,TUNISIA ,ASIAN MARKET ,and have
established good cooperation with clients there .
9 .Our client:
In China :Such as many large and listed LED factory are our client
: MLS ,ETI ,KONKA ,FSL ,RISHANG ,OUTRACE ,NEO-NEO ,NAVIGATE
,CHANGFANG ,MRSON TECHNOLOGY ,HELI etc .
In the overseas ,such as SURYA ,POLYCAB ,NTL ,HQ etc .are very
large company,we are popular all over the world
FRQ
1 .The main feature of ETON pick and place machine ?
Main Features of ETON SMT Pick and Place Machine
A .Realizes a Super-high Speed Placement Speed of 150,000 CPH
Realizes the Highest Placement Speed Among Chip Shooters of the
Same Class by Adopting a New Flying Head Mechanism Equipped With 34
heads.
B .Electrically Driven High Speed and High Precision Feeder
Electrically Driven SM Feeder
Allows integrated use of 0603/2P/4P Equipped with a function to
automatically align the pickup position between feeders to improve
the simultaneous pickup rate. Able to set various part supply
speeds to improve the stability of part supply.
Professional is our truth . Let 's light up your business .
