SMT pick and place machine,LED light making machine,LED light
production machine.
1.Features:
1. Mount order internal implementation of the software
automatically optimize, give full play to the four head performance
2. Self-designed hardware and software protection devices make a
loss rate of less mishandling.
3. The software interface open operation and set so that the
different requirements of customers are met.
4.You can display all the joined board coordinate points in the
software, which coordinates and fine-tuning to achieve
high-precision placement.
5.You can set the pitch for each joined board in the software, and
according to all discharge spacing display coordinates, you can
choose which joined board no need to mounting.
2 . Features :
Apply to the SMT machine , PCB , LED hard light board and LED soft
lamp strip etc .
Apply to electric board , tube ,driver , bulb , strip , lamp ,
panel , ceiling light , down light , screen , street light , flood
light , etc .
Apply to LED chip , capacitors , resistors , IC , shaped components
etc . (intelligent , use widely )
8 nozzles altogether , 20 feeders , partA or partB can be mounted
separatly . Easy to operate .
Patent Number : ZL 2011 2 0237740.9/ZL 2011 2 0334606.0
ZL 2012 2 0178869.1/ZL 2012 2 0415505.0
ZL 2012 2 0415044.7/ZL 2012 2 0415356.8/ZL 2012 2 0415061.0
3 . Technical Parameter :
| Specifications | ETON SMT Pick and Place Machine HT-E5 |
| Alignment | Flying Vision |
| Number of Spindles | 8 heads |
| Placement Speed | 35,000 CPH(Optimum) |
| Placement Accuracy | ±50μm+3σ (Based on the Standard Chips) |
| Component Range | Chip 0402 ~30mm |
| Board Dimension(mm) | 50(L) x 50(W)~500(L) x350(W) |
| Feeder Capacity | 8mm,12mm,16mm,24mm option,according to client products |
| Power | AC 220 50/60Hz,single Phase |
| Air Consumption | 0.5 ~ 0.6MPa(5 ~ 6kgf/cm2) |
| Mass | Approx. 1370kg |
| External Dimension(mm) | 1458(L) x 1226(D) x 1437(H) |
4 . Our Advantage :
Date Analysis Compared with other Manufacturers
| Manufacturers/Parameter | Speed | Head | Precision | Patent | service |
| Other company F130 | 15000CHP | 4PCS | 0.03mm | __ __ | NO |
| Other company 5M168 | 18000CHP | 6PCS | 0.03mm | __ __ | NO |
| Our Eton HT-XF | 150000~170000CPH | 34PCS | 0.02mm | Technology Patents | service office |
| Our Eton HT-T7 | 100000~130000CPH | 60PCS | 0.02mm | Technology Patents | service office |
| Our Eton HT-E8T | 80000CPH | 16PCS | 0.02mm | Technology Patents | service office |
| Data Comparision | 4 to 8 times higher than others | 4 to 8 times higher than others | higher precision | Global First | Support promptly |

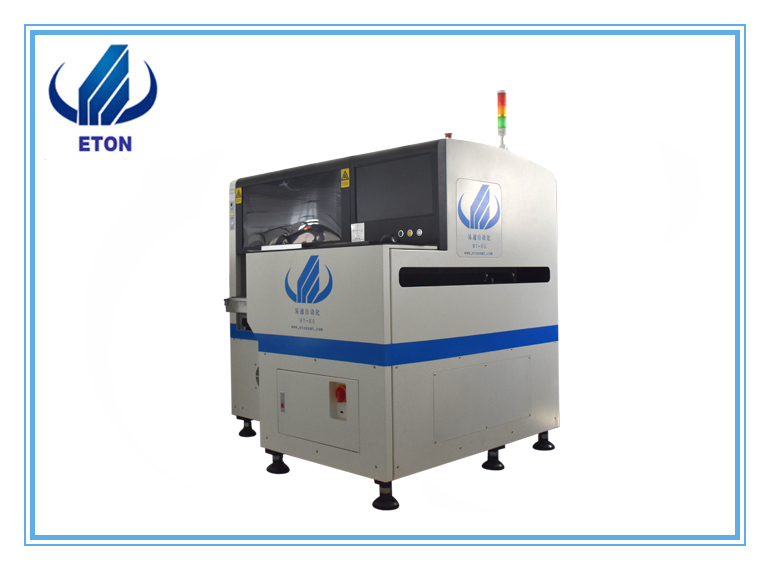

5 . Product Image :
6 .Company Information
ETON is the leading SMT factory solution provider in China,
offering professional SMT factory building advice and service more
than 10 years experience.
Our products have won a good reputation all over the world, We’re
sincerely looking forward to serving you in the nearest future.
7 .Packaging & Shipping
1)Standard wooden case package with vacuum package
2)Strong wood package for heavy and large equipment
8 .Our Services
Excellent Service .
Upgrade the software will be free for whole lifetime of machine .
Visit customer regularly and gather information .
Pre-Sales Service
* Inquiry and consulting support.
* Sample machine testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
