    large SMT Production line automatic Screen Printing Machine for PCB With CE Certificate

    Ask Lasest Price
    Brand Name : ETON
    Model Number : ET-1200
    Certification : CE,SIRA,CCC,ISO
    Price : USD1000~4500USD per Unit
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P
    Supply Ability : 30 UNIT per month
    Delivery Time : Within 15 days after receive the downpayment
    • Product Details
    • Company Profile

    large SMT Production line automatic Screen Printing Machine for PCB With CE Certificate

    Product Description:
    SMT LED machine,SMT LED pick and place machine,LED light production machine,LED light assembly machine


    1.Technical Parameter:


    HT-ET1500 Technical Parameter
    1Scraper height65±1mm
    2Scraper thickness0.25mm coating
    3Printing modeSingle or double scraper printing
    4Demoulding length0.02mm~12mm
    5Printing speed0~200mm/s
    6Printing pressure0.5~10KG
    7Printing scope±765mm from the center
    8Field of view10.24mm*6.4mm
    9Platform adjustment rangeStandard shape benchmark point(SMEMA standard),solder pad/openings
    10Camera systemIndependent camera,upwards/downwards imaging vision system,geometri matching location
    11Repetition precision of image calibration±15 micron
    12Repetition precision of printing±30 micron
    13Cycle time<15S,Cycle time/exclude printing&cleaning
    14Power requirementsAC220V ±10% 50/60HZ,15A
    15Compressed air requirements4~6kg/cm²,10.0
    16Operation SystemWindows XP
    17Environment temperature23±3
    18Relative humidity45~70%RH4
    19Product Changeover<10 mins

    2. Features:

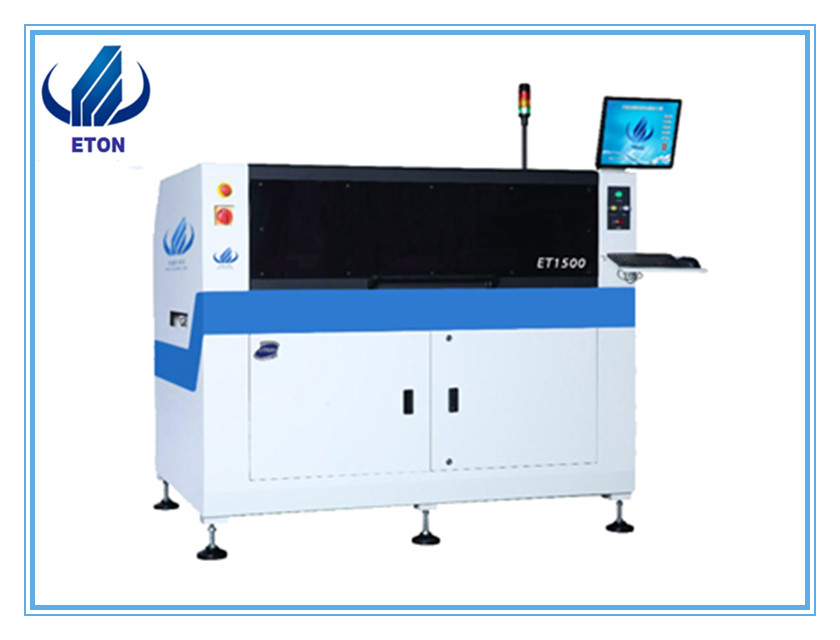

    Eton automatic stencil printer HT-ET1500:


    Apply to different kinds of PCB board,FR4,Aluminum,flexible PCB,FPCB etc.


    Applicable PCB size: 1500mm length 500mm width.(Big size,more flexible)


    Using windows XP operating system,indepent research and development of graphical man-machine interface.In particular,to do the program file navigation effect,to facilitate all operators quickly familiar with the operation;menu in Chinese/English switch,operation log,fault record/fault record/fault self-diagnosis/failure analysis tips/light alarm and other functions,making the operation simple and convenient.


    Z axis screw servo direct connecting device,to ensure high precision,high speed and stripping stability.


    With net frame rectifying and linear motor driving,the system is more stable than “platform correction system”,and therefore the machine is more in line with high precision requirement of printing.The stencil clamping system can be automatically positioned by stencil MARK point position data input without adapter,which is convenient for the flexible replacement of the stencil of different sizes.


    High-power fan plus venturi vacuum generator device vacuum;dry,wet,vacuum three cleaning methods,and can choose any combination of free,the user can set the cleaning period,time,speed and other parameter according to actual needs;soft wear-resistant rubber wipe board,clean thoroughly,easy to disassemble.


    3. Product Image:



    4.Our service


    Our Services

    1. Help customer analyze product project and provide solution.

    2. Freely sample test.

    3. Skilled jig design services.

    4. Provide shipping/delivery information checking service.

    5. One year guarantee, all life maintain promise.

    6. 24 hours feedback speed by email of others.
