SMT pick and place machine,LED light making machine,LED light
production machine.
1. Controlled by industrial control computer + independent special
controller, system stability, simple operation, easy to learn.
2. Powerful software, programming coordinates using numerical and
graphical display, coordinate correction and change is convenient,
the production process of graphical display patch progress and
components, subsidy is convenient.
3. The software USES the database system, different types of PCB
programming can be stored, convenient call, a programming of new
products, calling for life.
4. The platform, the Y axis, the X axis can be manually move, free
movement speed adjustment, realize arbitrary point can manually to
arrive, convenient programming.
5. Imported negative pressure detection system, to accurate
detection of absorption material, effectively prevent leakage of
material, extractor.
6. A negative pressure generator with built-in, low noise, long
service life, vacuum pressure constant.
7. The standard configuration: 1 set of industrial control
computer, opening four groups, suction nozzle
8. Optional: matchs outside to 8 mm, 12 mm, 16 mm and 24 mm yamaha
feeder; Air compressor;
Applicalbe industry:
Household appliances industry, Auto electronics industry, Power
industry, LED industry, security,instruments and meters industry,
communications industry, intelligent control industry, Internet of
Things(IOT) industry and military industry
3 . Technical Parameter :
| Model | SMT chip mounter HT-E6T-1200 |
| Machine Style | Single model with 8 heads |
| Alignment | Flight Vision |
| Placement Rate | Vision:35,000CPH(Optimum) |
| Feeder Capacity | Tape feeder:8mm,12mm,16mm,24mm is avaible |
| Vibration feeder is avaible |
Component Range | Smallest Size | 0402 |
| Largest Size | 30mm (Pitch 0.2mm) |
| Max Height | 3mm |
| Rotation | ±360° |
| Placement Accuracy | ± 0.02mm(repeat placement accuracy |
| X-Y Repeatability | ±0.02mm |
| Board Dimension(mm) | Maximum | 1200 x 350mm |
| Minimum | 50 x 50mm(Option) |
| Electricity Supply | 220V |
| Power | 4KW |
| Weight | 1200KG |

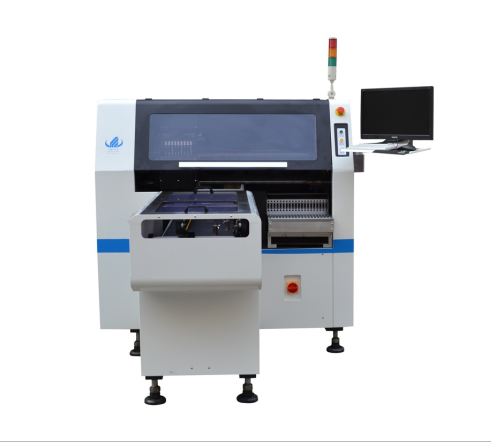

4 . Product Image :
5 .Our Services
Excellent Service .
Pre-Sales Service
* Inquiry and consulting support.
* Sample machine testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
